PV Inverter,<MERCURY><ED>, 1.5 ~ 11KW, Battery Volt 12,24,36,48V, pure sine wave, MPPT, equipment only,
| Certification | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
|---|---|
| Manufacturing lead time (high quantity) | 35 days |
| DepthxWidthxheight(mm) | 403*304*114mm(1.6,3KW), 433*330*138mm(4,6.2KW), 601*360*163.5mm(8, 11KW) |
| Package size | 480*375*182MM(1.5, 3KW), 512*420*210MM(4,6.2KW), 735*473*272mm(8,11KW) |
| Gross Weight (kg) | 7.2(1.5KW),7.6(3KW),10.2(4KW),10.8(6.2KW),20.5(8.6KW), 21.2(11KW) |
| Output Power | 1.5 ~ 11KW |
| Communication | RS232; WiFi (optional, USD15) |
| MPPT | DC60 ~ 500V |
| off-grid type | |
| Protection | over volt, under volt, over temperature, over current, under current, reverse connect |
| Wall- Mounted type | |
| AC in & out: | 110, 220, 230,240V; 50 or 60Hz |
| Response time | <20 ms |
| warranty | 14 months |
| battery not included |
Product Name : PV Inverter,<MERCURY><ED>, 1.5 ~ 11KW, Battery Volt 12,24,36,48V, pure sine wave, MPPT, equipment only,
Model : MERCURY
In Pack : one product (equipment only)
Product Warranty : one year
|
Ouput
Power |
Volt/Frequency |
Weight (Kg) |
size H*W*D (mm) |
Ref. Price (US$/set) |
|
1500 W |
1
Battery Volt:12Vdc
2 PV input:40~500Vdc |
7.2 |
403*375* 114 |
269.78 |
|
3000 W |
1
Battery Volt: 24Vdc
2 PV input:40~500Vdc |
7.6 |
403*375* 114 |
284.76 |
|
4000 W |
1
Battery Volt: 24Vdc
2 PV input: 60~500Vdc |
10.2 |
433*330* 138 |
404.67 |
|
6200 W |
1
Battery: 48Vdc
2 PV input: 60~500Vdc |
10.8 |
433*330* 138 |
464.62 |
|
8600 W |
1
Battery: 48Vdc
2 PV input:90~500Vdc |
20.5 |
601*360* 163.5 |
899.26 |
|
11000W |
1
Battery: 48Vdc
2 PV input:90~500Vdc |
21.2 |
601*360* 163.5 |
929.23 |
Remark: Price may change frequently.
Warning: do not let liquid flow into the interior of the inverter power supply.
This series of charging and inverter machines integrates an inverter, MPPT controller, and AC charger. After careful design and optimization, it can meet the high standard requirements of different fields and electrical equipment for photovoltaic off-grid energy storage power generation. Whether in a domestic, commercial, or industrial environment, it can provide stable and reliable sine wave AC power, ensuring the safe and efficient operation of electrical equipment. It is suitable for inverter or charging or emergency power supply backup applications with battery rated voltage of DC24V. The ultra-wide MPPT range of photovoltaic input allows for more flexibility in selecting photovoltaic panels.
Main uses
Household appliances: air conditioning, television, refrigerator, washing machine, etc.
Office equipment: computers, printers, photocopiers, etc.
Commercial equipment: cash registers, POS machines, advertising display screens, etc.
Electric tools: various electric tools and mechanical equipment.
Lighting system: indoor and outdoor lighting equipment.
Industrial equipment: production lines, mechanical equipment, etc.
Telecommunications equipment: communication base stations, network equipment, etc.
Procurement, Delivery, Goods exchange, Warranty. Have a scan before you make a decision.

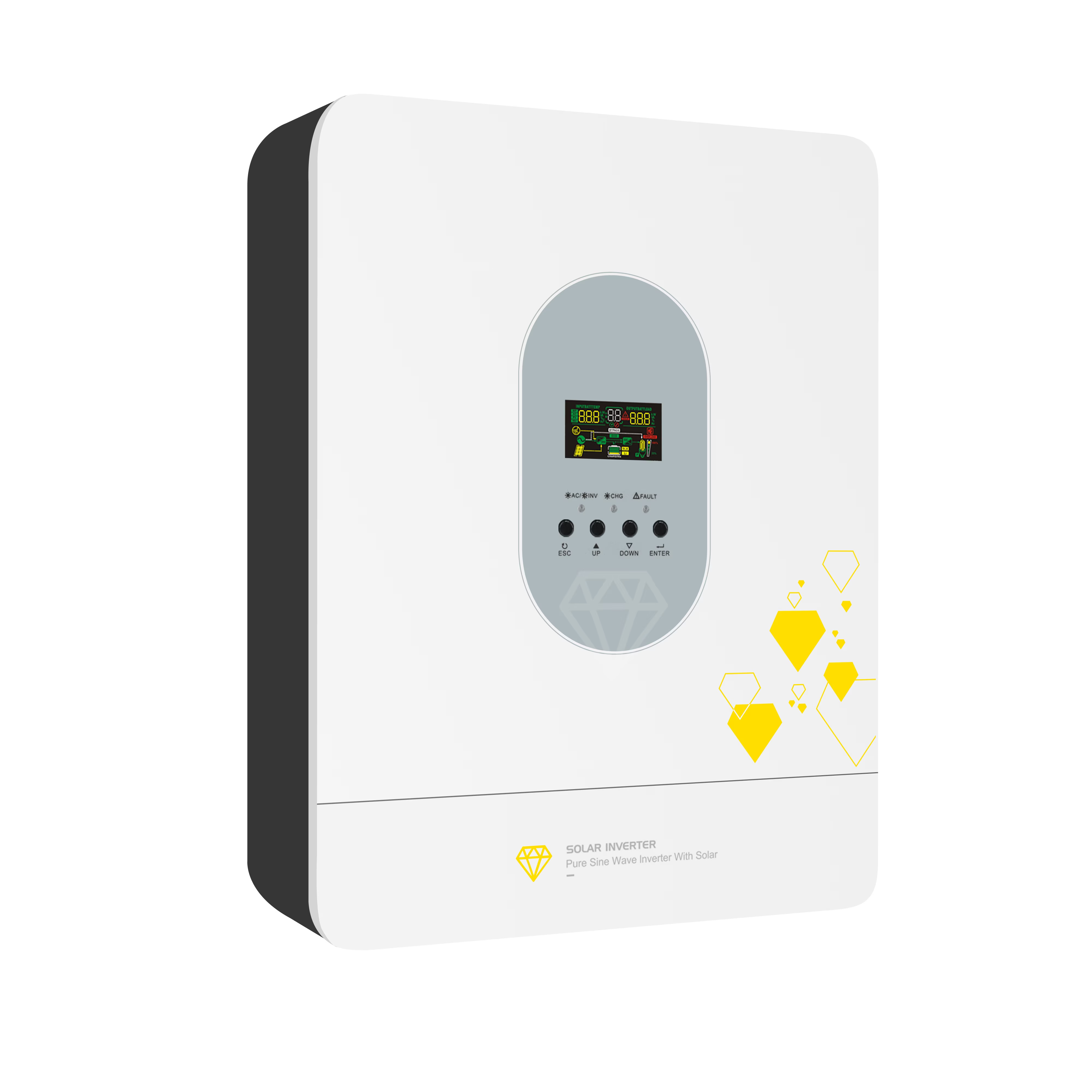

Above: 1.5~ 6.2KW

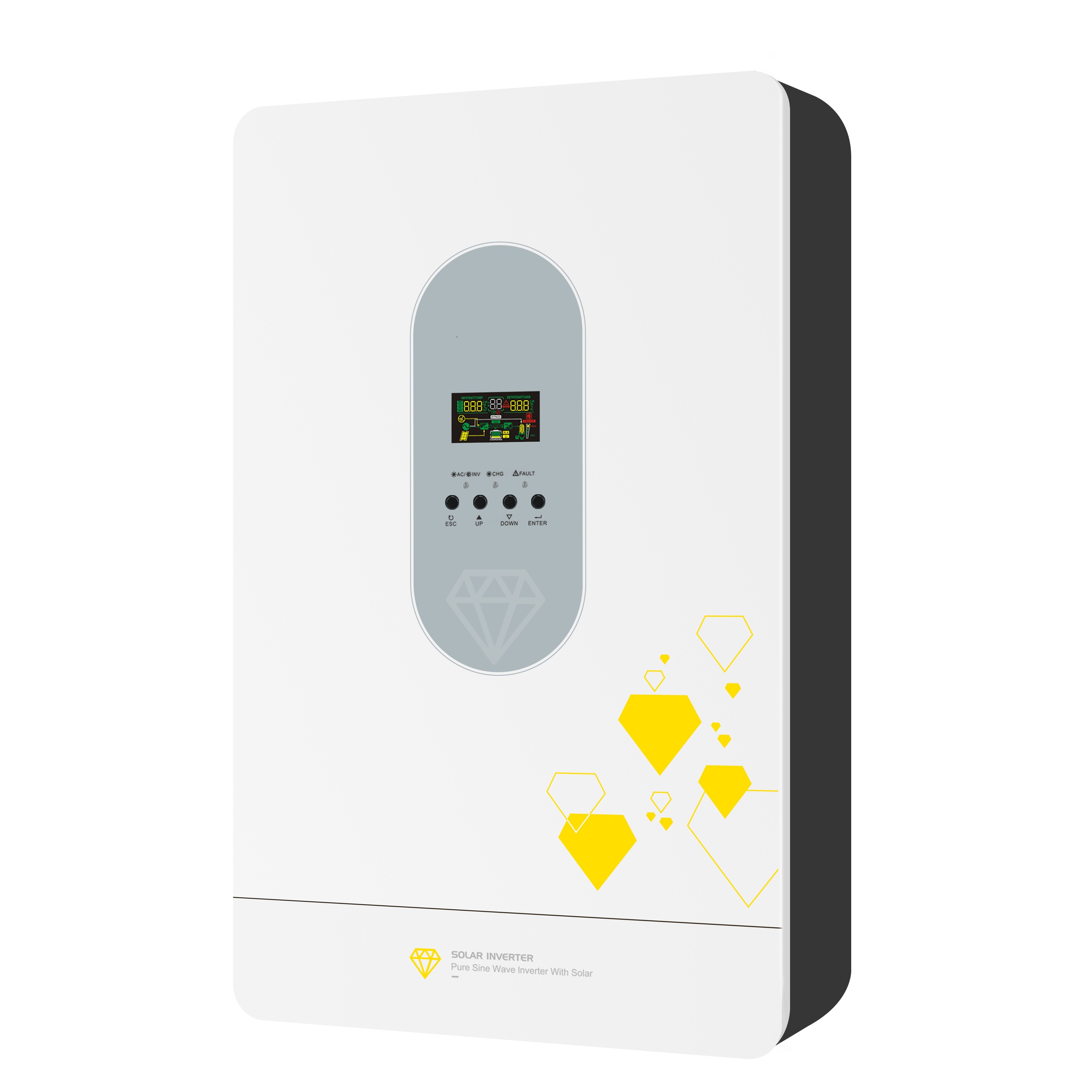

Above: 1.5 ~ 6.2KW

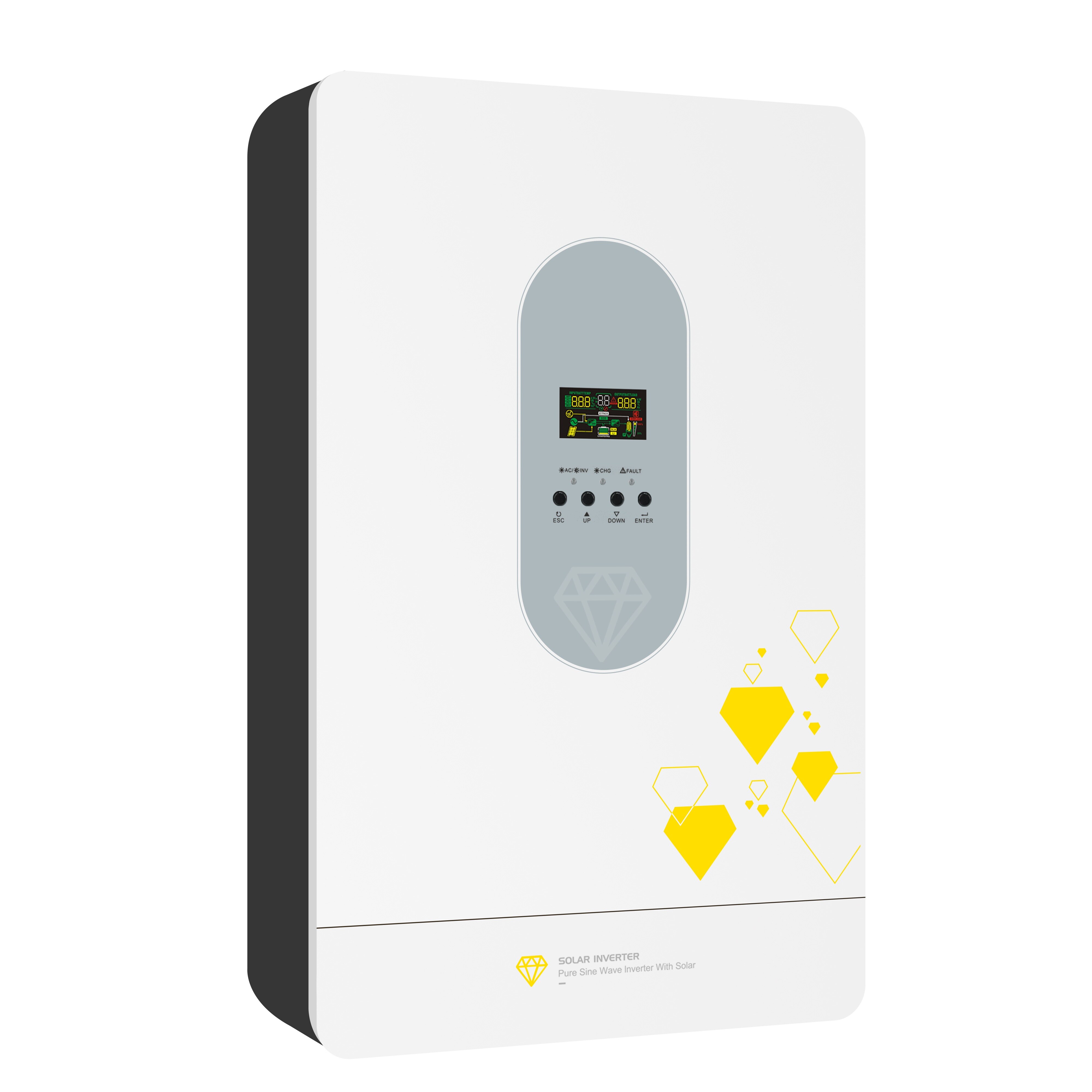

Above: 11KW
Above: 11KW
